Aperçu
- Condition: Véhicule neuf
- Manufacturier : Honda

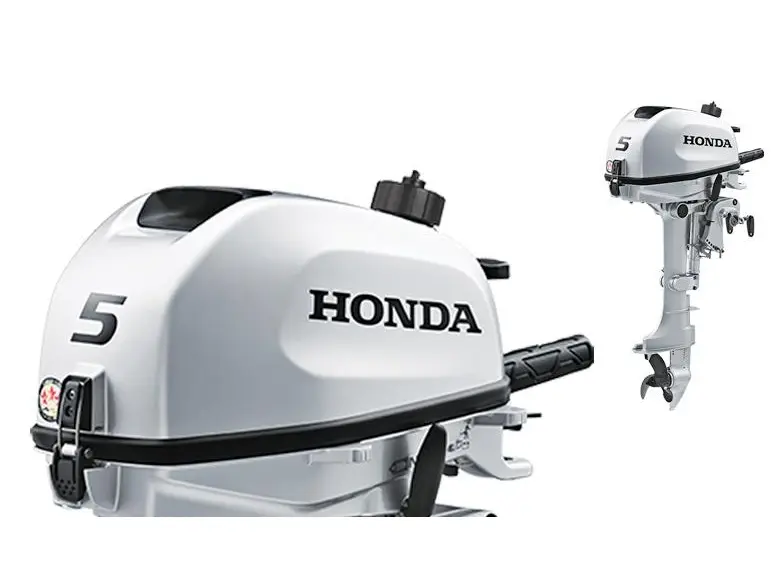

- Modèle : Honda 5 HP Short Shaft Outboard
- Année : 2023
- # inventaire : 7592
- Type : Moteurs hors-bord
- NIV : BADC 1019078
- Moteur : 4-Stroke, OHV, 1 Cylinder / 2 Valves
- Capacité du moteur : 127.0 CC
- Cylindres : 1
- Essence : Essence
Spécifications
- Type : 4-temps à soupapes en tête; 1 cylindre / 2 soupapes
- Cylindrée : 127 cm3 / 7,75 po3
- Alésage et course : 60 mm x 45 mm / 2,36 x 1,77 po
- Plage de régimes à plein gaz : 4 500 à 5 500 tr/min
- Puissance nominale à l'arbre de l'hélice : 5 HP à 5 000 tr/min
- Système de refroidissement : Refroidi à l'eau avec thermostat
- Alimentation : 1 carburateur
- Essence recommandée : Ordinaire sans plomb (Min. octane 86)
- Capacité du réservoir : 1,5 L (0,33 gal. Imp.)
- Système d'allumage : Décharge de condensateur (allumage électronique CDI)
- Système de démarrage : À rappel
- Échappement : Sous l'eau, au-dessus de l'hélice
- Lubrification : Lubrification par pression (pompe throchoïde)
- Huile recommandée : SAE 10W30 FC-W® ou catégorie de service API SJ ou ultérieure
- Contenance d'huile : 0.55 L (0.48 Imp. pte)
- Angle au tableau arrière (transom) : 5 phases de réglage (4°-8°-12°-16°-20°)
- Angle d'inclinaison du relevage (Tilt) lorsque l'angle au tableau arrière est à 12° : 3 phases de réglage (18°- 34°- 58°)
- Angle de direction : 45° (à droite et à gauche)
- Rapport de démultiplication : 2,08 : 1 (27/13)
- Rapports au levier de commande : F-N-R
- Alternateur (démarreur manuel) : De série, système de charge 12 VCC, 6 A
- Alternateur (démarreur électrique) : S.O
- Puissance de charge de batterie : S.O
- Relevage assistée : S.O
- Relevage et réglage d'assiette assistés : S.O
- Relevage assisté par gaz : S.O
- Alarme pression d'huile : De série
- Limiteur de surrégime : De série
- Alarme de surchauffe : S.O
- Alarme eau dans l'essence : S.O
- Alarme état de la batterie : S.O
- Prise d'indicateur de vitesse : S.O
- Trousse de réglage du régime de traîne : S.O
- Trousse d'indicateur d'angle de gouverne : S.O
- Trousse limiteur du relevage : S.O
- Largeur hors tout : 347 mm / 13,7 po
- Longueur hors tout : 524 mm / 20,6 po
- Hauteur hors tout : 1020 mm / 40,2 po (SHC) 1147 mm / 45,2 po (LHC)
- Hauteur du tableau (Type S) : 434 mm / 17,1 po
- Hauteur du tableau (Type L) : 561 mm / 22,1 po
- Type d'hélice (matériau) : 3 pales (aluminium)
- Hélice de série (Diamètre x Pas) Type S : 200 mm x 170 mm / 7-7/8 x 6-3/4 po
- Hélice de série (Diamètre x Pas) Type L : 200 mm x 170 mm / 7-7/8 x 6-3/4 po
- Type S : 27,8 kg / 61,3 lb
Notes
Notes :
Price Includes Freight and PDI
The Honda outboard motor offers plenty of portability, performance, reliability and user-friendliness in a portable 4-stroke outboard.
The BF5 is easy to start, easy to stop and easy to carry thus making it ideal for small fishing boats, inflatables and as an auxiliary motor. The new sleek design, the 1.5 L internal (built-in) fuel tank and the latest technology all contribute to the best-in-class performer title. In addition, the BF5 outboard comes with a high-output charging system of 6 Amps at 12 Volts to power consumer demands for electronic devices on board, giving outdoor enthusiasts ample power to charge accessories including running lights, fish finders, GPS systems and other electronics (it can also be connected to an optional auxiliary tank for longer journeys). The new BF5 is available with either a short (38 cm/15") or long (51 cm/20") shaft. You also have the choice of an additional four (4) different propeller options for the style that best fits your boating needs. The Honda BF5 portable outboard engine has long, smooth and quiet run time and its technologies and features will deliver performance, reliability and ease of use for your small boats and inflatables.
World-renowned Honda quality combines proven reliability with one-cylinder, 127 cubic centimeter engine block and benefit from Honda's 4-stroke engine technology expertise.
The Honda BF5 is among the lightest in its class at 27.8 kg (61.3 lb.). It is not just among the lightest in its class but is exceptionally easy to carry as a result of its redesigned carrying handle shape. This model can be carried either positioned front to back or left to right, allowing for easy transport and installation. When it comes to storage of the engine, the tiller handle can fold up and down in a variety of positions; folding down facilitates the stowing of the engine, particularly in tight storage compartments. In addition, as an auxiliary outboard, it can be easily stowed and away from the elements, rather than kept on the boat’s transom bracket. The all-new BF5 portable outboard provide class-leading performance in a compact design for a wide range of marine applications from leisure to emergency use. The BF5 is well-suited for different types of small boats including skiffs, inflatable boats and dinghies.
Features:
- 1.5 L internal (built-in) fuel tank
- Available with either a short (38 cm/15") or long (51 cm/20") shaft
- Four additional propeller options available for the style that best fits your boating needs
- High output charging system of 6 Amps at 12 Volts, perfect for powering electronic devices including running lights, fish finders, GPS systems and other electronics (can also be connected to an optional auxiliary tank for longer journeys)
- Sleek design
- Smooth, quiet operation
- Longest continuous running time in its class
